Description

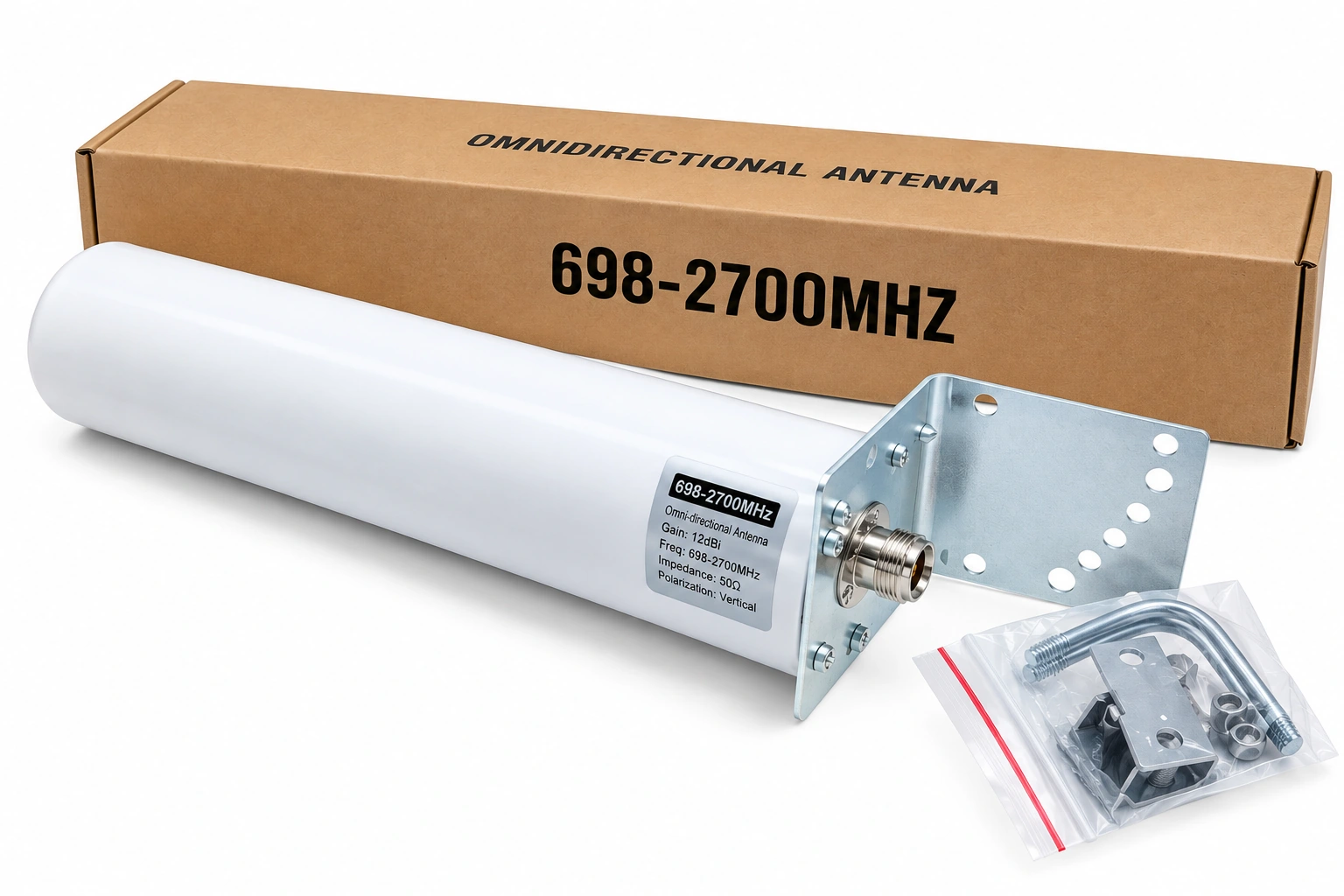

12dBi 698–2700MHz Omnidirectional Outdoor GSM Antenna
The 12dBi 698–2700MHz Omnidirectional Outdoor GSM Antenna is designed for compatible cellular signal booster and repeater installations. It provides a wide operating range covering frequencies commonly used by compatible 2G, 3G and 4G LTE cellular networks.
Its omnidirectional design makes it particularly useful where signals may be available from different horizontal directions and precise alignment toward a single mobile tower is not preferred.
12dBi Specified Antenna Gain
The antenna is specified with a 12dBi gain. It is intended for external cellular antenna installations where a compatible signal booster or repeater requires an outdoor antenna.
Actual signal performance will depend on the available outdoor cellular signal, operating frequency, antenna position, cable losses, surrounding buildings and the connected booster system.
698–2700MHz Wideband Operation
The antenna is specified for a frequency range of 698–2700MHz. This wide range covers frequencies used by many compatible 2G, 3G and 4G LTE cellular systems.
The antenna and connected signal booster must both support the particular frequency used by the required mobile network.
Omnidirectional Outdoor Design
An omnidirectional antenna is designed to receive and transmit cellular RF signals around the antenna horizontally rather than concentrating reception primarily in one direction.
This can simplify installations where signals are available from different directions or where accurately aiming a directional Yagi antenna toward one tower is impractical.
50Ω Impedance & Vertical Polarization
The antenna is specified with a 50-ohm impedance and vertical polarization, making it suitable for compatible cellular RF and signal booster installations designed around these characteristics.
Outdoor Mounting Hardware
The antenna includes a metal mounting bracket and associated mounting hardware as pictured. This allows the antenna to be secured to a suitable pole, mast or other compatible mounting point.
Suitable Applications
- GSM signal booster installations
- Cellular repeater systems
- Compatible 2G cellular systems
- Compatible 3G cellular systems
- Compatible 4G LTE systems
- Home and office signal booster installations
- Shops and commercial premises
- Replacement outdoor cellular antennas
Key Specifications
- Antenna Type: Omnidirectional outdoor antenna
- Specified Gain: 12dBi
- Frequency Range: 698–2700MHz
- Impedance: 50Ω
- Polarization: Vertical
- Installation: Outdoor
- Application: Compatible GSM/cellular signal boosters and repeaters
Important: Antenna Only
This product is the outdoor antenna and mounting hardware only. The cellular signal booster/repeater, indoor antenna, coaxial extension cable, power supply and other system components are not included unless specifically stated separately.
Before Ordering
Confirm that your signal booster operates within the antenna’s 698–2700MHz frequency range and uses the correct antenna connection before ordering.
The 698–2700MHz specification does not mean that the antenna supports every cellular network or every frequency used by a particular operator. Compatibility depends on the operating frequency of the complete installation.
Installation Guidance
Install the antenna vertically at a suitable elevated outdoor position with good exposure to the available cellular signal. Keep the antenna securely mounted and use compatible low-loss coaxial cable and connectors appropriate for the signal booster system.
Buy 12dBi Outdoor GSM Antenna in Kenya
Buy this 12dBi 698–2700MHz Omnidirectional Outdoor GSM Antenna from Marcnet Gadgets in Kenya for compatible 2G, 3G and 4G LTE signal booster and cellular repeater installations.
Explore more GSM Booster Accessories at Marcnet Gadgets.
For a closely related option, see 18dBi 698–2700MHz Omnidirectional Outdoor GSM 2G 3G 4G LTE Antenna.
