Description
200M HDMI KVM IP Extender Over CAT6 – HDMI & USB TX/RX
The 200M HDMI KVM Extender is designed to extend compatible HDMI video together with USB/KVM functionality between remotely located equipment using network cabling.
The supplied transmitter and receiver are clearly marked HDMI H.264 200M KVM IP Extender, providing a long-distance solution for installations where the computer, recorder or other HDMI source needs to be positioned away from the destination display and control location.
HDMI Extension Up to 200 Metres
The product is identified as a 200M KVM IP Extender, providing substantially greater transmission distance than conventional short HDMI connections.
This makes the extender suitable for larger buildings, CCTV installations, conference facilities, classrooms and other environments where the source and destination equipment may be located in different rooms or areas.
HDMI and USB/KVM Extension
Unlike a basic HDMI-only extender, this model is designed as a KVM extender. In addition to extending HDMI video, its USB connectivity provides the physical interface required for remote KVM applications.
This can be useful when a computer, DVR/NVR or other compatible source needs to remain in a secure or central location while the display, keyboard and mouse are operated from another location.
Separate Transmitter and Receiver
The kit consists of dedicated Transmitter (TX) and Receiver (RX) units.
The transmitter is installed at the source side, while the receiver is positioned at the remote display/control location. Network cabling provides the long-distance connection between the two units.
H.264 Technology
Both physical units are marked H.264. This distinguishes this model from simpler point-to-point HDMI cable extenders and identifies the technology stated by the manufacturer for the extender system.
Network Cable Transmission
The extender uses an RJ45/network connection for long-distance transmission, making structured network-type cabling practical for installations where running a very long conventional HDMI cable would be inconvenient.
Good-quality cabling and properly terminated connectors are recommended, particularly when approaching the product’s stated maximum transmission distance.
Powered Operation

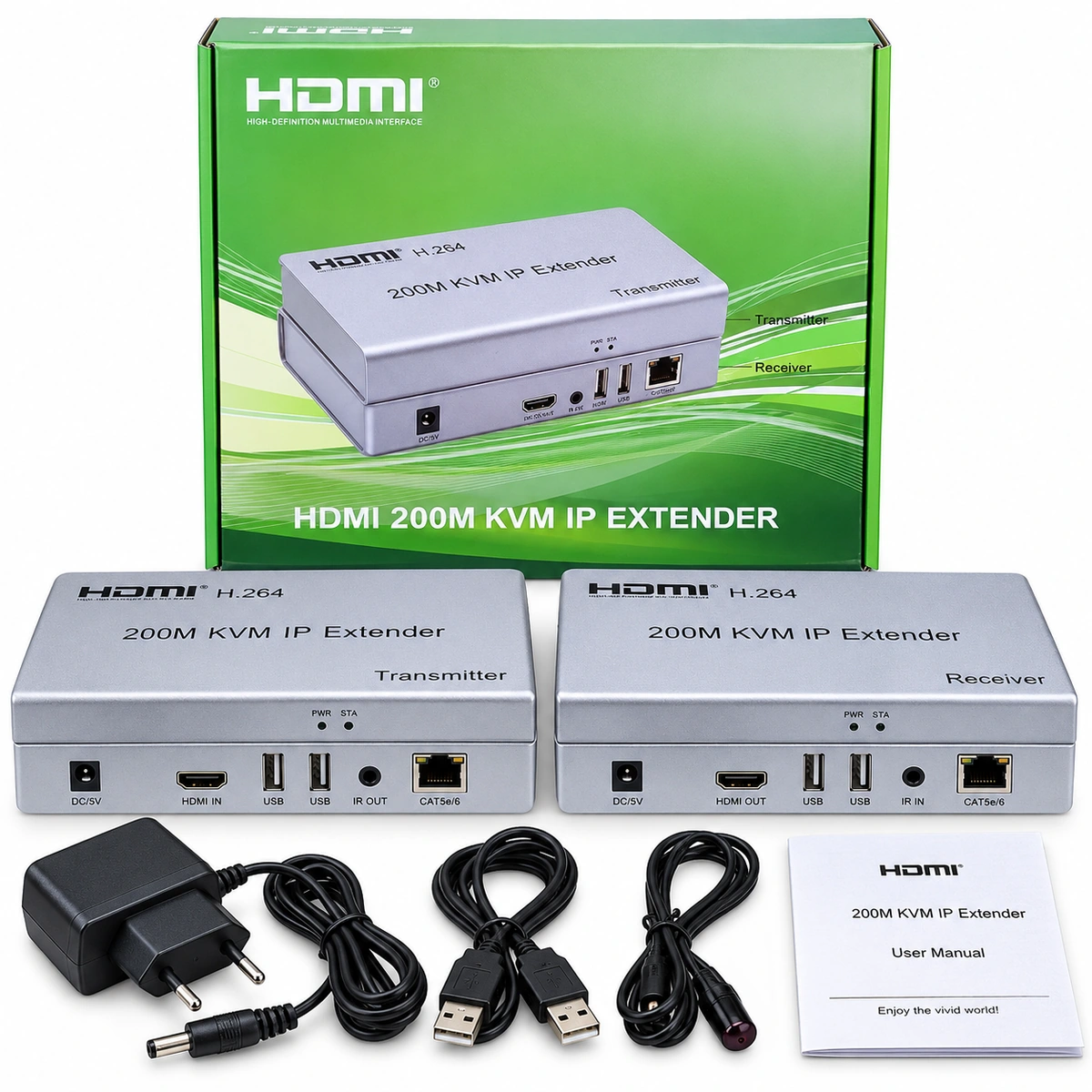

The supplied photograph confirms external power accessories for the extender system. Powered operation supports the transmitter and receiver electronics required for long-distance signal extension.
Metal TX and RX Enclosures
Both the transmitter and receiver use compact silver metal enclosures. Each unit is clearly identified as either Transmitter or Receiver, helping simplify installation at the correct end of the connection.
Suitable Applications
- CCTV DVR and NVR monitoring
- Remote computer operation
- Control rooms
- Server and equipment rooms
- Conference rooms
- Classrooms and training facilities
- Digital signage installations
- Office AV systems
- Remote display installations
- Professional HDMI and KVM installations
Product Specifications
| Product Type | HDMI KVM IP Extender |
|---|---|
| Configuration | Transmitter (TX) + Receiver (RX) |
| Maximum Distance Stated | Up to 200 metres |
| Video Interface | HDMI |
| KVM / Peripheral Interface | USB |
| Long-Distance Connection | RJ45 / network cabling |
| Technology Marking | H.264 |
| Power | External powered operation |
| Housing | Silver metal enclosure |
| Primary Function | Long-distance HDMI and USB/KVM extension |
Typical Installation
Position the transmitter beside the source equipment and connect the appropriate HDMI and USB interfaces. Install the receiver at the remote display and control location, then connect the transmitter and receiver using suitable network cabling.
Connect the required power supplies and the destination HDMI display and USB/KVM peripherals according to the supplied product instructions.
Why Use a KVM Extender?
A standard HDMI extender primarily addresses video and audio transmission. A KVM extender is intended for installations where remote interaction with the source equipment is also required.
This is particularly useful for CCTV and equipment-room installations where the recorder or computer can remain securely located while the operator works from a remote monitoring position.
Before Ordering
Confirm that your installation requires both HDMI extension and USB/KVM functionality. Also confirm the required video resolution, network-cable type, USB peripherals and installation distance.
The 200-metre figure is the distance stated for the product. Actual achievable distance and performance can depend on cabling, terminations, network topology, source equipment and destination equipment.
Specific claims such as HDCP compatibility, exact video resolution/frame rate and latency should be confirmed from the product manual where they are critical to the intended installation.
Buy a 200M HDMI KVM Extender in Kenya
Order the 200M HDMI KVM IP Extender Over CAT6 – HDMI & USB TX/RX from Marcnet Gadgets in Kenya for CCTV, remote-computer, control-room, conference-room and professional long-distance HDMI/KVM installations.
Explore more HDMI Extenders Cat 6 at Marcnet Gadgets.
For a closely related option, see 60M HDMI KVM Extender Over CAT6 with USB & Audio.
