Description

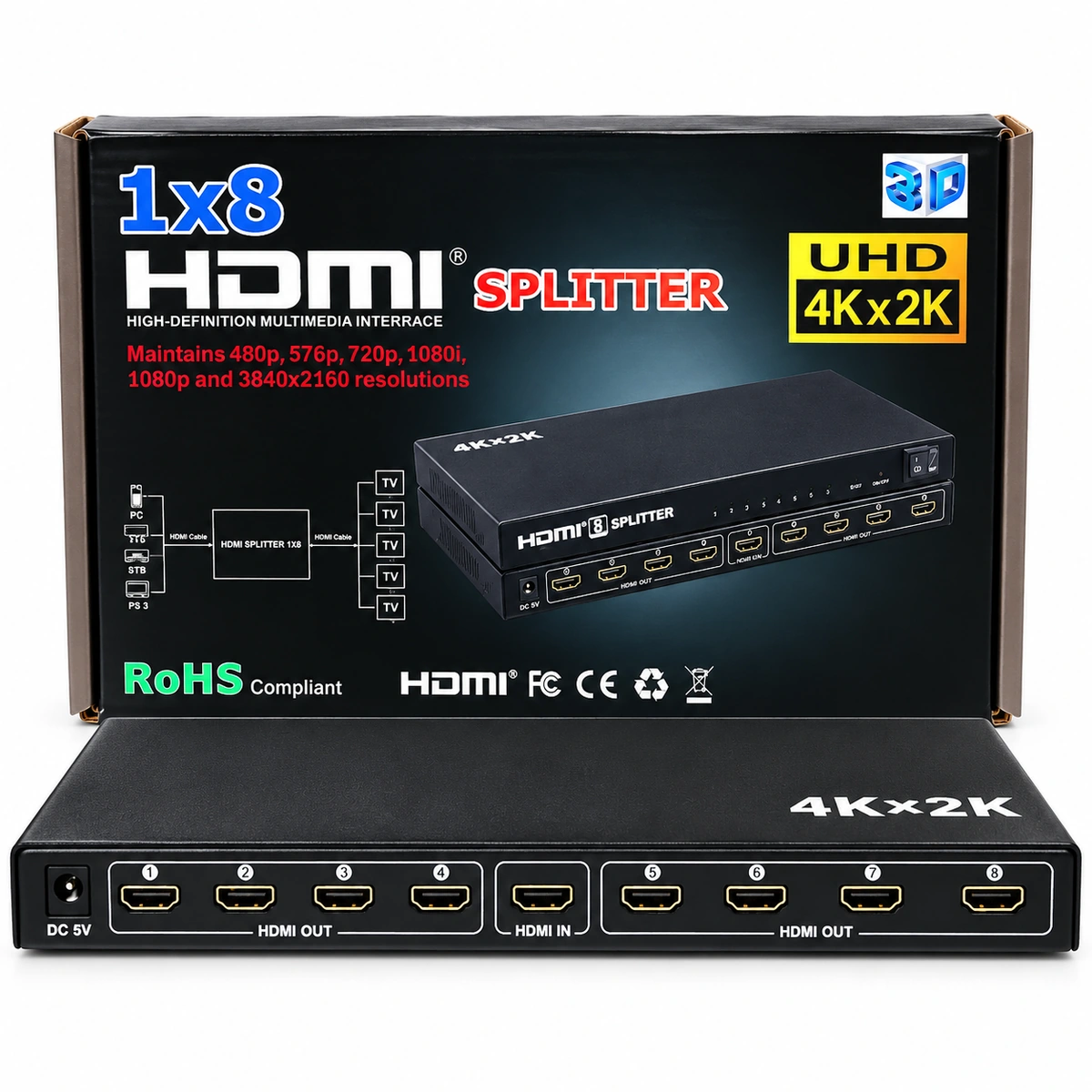

Powered 4K HDMI Splitter 1×8 – 8 Way UHD 3D
The 4K HDMI Splitter 1×8 provides a practical way to distribute one compatible HDMI source simultaneously to up to eight HDMI displays. It is designed for installations where the same video and audio content needs to appear across multiple compatible TVs, monitors or projectors.
With one HDMI input and eight individually numbered HDMI outputs, this powered splitter is suitable for digital signage, presentations, classrooms, conference rooms, showrooms and other multi-display AV installations.
One HDMI Input to Eight HDMI Outputs
The splitter accepts one compatible HDMI source through its HDMI input and duplicates that source across up to eight HDMI outputs.
This makes it suitable when the same presentation, video, information feed or other HDMI content needs to be displayed on several screens simultaneously.
This is an HDMI splitter, not an HDMI matrix or multi-source switch. The eight outputs reproduce the same connected HDMI source rather than providing eight independently selectable sources.
UHD 4K×2K and 3840×2160 Support
The supplied retail packaging identifies the unit as a UHD 4K×2K HDMI Splitter 1×8 and specifically lists support for 3840×2160 resolution.
The packaging also lists 480p, 576p, 720p, 1080i and 1080p resolutions, making the splitter suitable for a range of compatible HDMI source and display configurations.
A specific 4K refresh rate is not stated on the supplied product information. If your installation requires a particular 4K frame rate or specialised HDMI feature, confirm compatibility before ordering.
3D HDMI Support
The retail packaging identifies the splitter as supporting 3D. Actual operation depends on compatible source equipment, display devices, content and HDMI cables.
Powered DC 5V Operation
The unit uses a DC 5V power connection for powered HDMI signal distribution. Powered operation is useful in multi-display installations where one incoming HDMI source needs to be actively distributed across several output ports.
Eight Numbered HDMI Outputs
The unit provides eight individually numbered HDMI output ports, making connections easier to identify during installation and troubleshooting.
The HDMI input is positioned separately from the output connections and is clearly marked on the unit.
Durable Black Metal Housing
The splitter is housed in a long black metal enclosure suitable for desktop, AV cabinet and other fixed installation environments. Its compact multi-port design keeps the HDMI connections organised when several displays are connected to the same source.
Suitable Applications
- Digital signage installations
- Retail shops and showrooms
- Conference and meeting rooms
- Classrooms and training centres
- Church and presentation AV systems
- Reception and information displays
- Exhibition and event displays
- Monitoring installations
- Compatible multi-screen entertainment systems
- Other installations requiring one HDMI source on multiple displays
Product Specifications
| Product Type | Powered HDMI Splitter |
|---|---|
| Configuration | 1×8 |
| HDMI Inputs | 1 |
| HDMI Outputs | 8 |
| Maximum Resolution Stated | 3840×2160 / UHD 4K×2K |
| Other Resolutions Listed | 480p, 576p, 720p, 1080i and 1080p |
| 3D Support | Yes, stated on packaging |
| Power | DC 5V |
| Housing | Black metal enclosure |
| Output Identification | Eight individually numbered HDMI outputs |
| Primary Function | Distributes one compatible HDMI source to up to eight displays |
HDMI Splitter vs HDMI Switch
An HDMI splitter and an HDMI switch perform different functions. This 1×8 HDMI splitter takes one HDMI source and duplicates it across up to eight displays.
If you need to connect several different source devices and choose which source appears on a display, an HDMI switch or matrix is required instead.
Important Compatibility Information
The final resolution and performance of a multi-display HDMI installation can depend on the capabilities of the connected source device, displays and HDMI cables.
Where a specific HDMI version, HDCP version, audio format, 4K refresh rate or other specialised feature is required, confirm that requirement before ordering because those specifications are not established by the supplied product information.
Before Ordering
Confirm that your source device has a compatible HDMI output and that the destination TVs, monitors or projectors have compatible HDMI inputs. Also check the required resolution and the HDMI cable lengths needed for your installation.
For professional installations using different display models, confirm the required resolution and compatibility across all connected equipment before installation.
Buy a 4K HDMI Splitter 1×8 in Kenya
Order the Powered 4K HDMI Splitter 1×8 – 8 Way UHD 3D from Marcnet Gadgets in Kenya for compatible digital signage, presentation, commercial and multi-display HDMI installations.
Browse 4K HDMI Splitters or explore HDMI Splitters & Switchers for related HDMI distribution products.
Explore more 4K HDMI Splitters at Marcnet Gadgets.
For a closely related option, see Powered 4K HDMI Splitter 1×4 – 4 Way UHD 3D.
