4K HDMI Matrix 4×2 with Remote

Description

4K HDMI Matrix 4×2 with Remote

The 4K HDMI Matrix 4×2 with Remote provides flexible HDMI source management for installations requiring multiple source devices and two HDMI displays. Its 4-input, 2-output matrix architecture allows compatible HDMI sources to be connected centrally and routed to the required displays without repeatedly disconnecting and reconnecting HDMI cables.

It is suitable for offices, meeting rooms, CCTV monitoring environments, presentation systems, entertainment setups and professional AV installations where several HDMI devices need to share two displays.

4 HDMI Inputs and 2 HDMI Outputs

The HDMI Matrix provides four HDMI inputs and two HDMI outputs, allowing multiple compatible HDMI source devices to remain connected to the system.

The matrix architecture provides greater routing flexibility than a conventional HDMI splitter. Instead of simply duplicating one source to multiple displays, a matrix is designed to route selected HDMI inputs to its available outputs.

Supports Up to 4K Resolution

According to the supplied product specifications, the matrix supports resolution up to 4K×2K at 30Hz and 1080p at 60Hz.

For successful 4K operation, the HDMI source, matrix, HDMI cables and destination display should all support the required resolution and refresh rate.

3D Video Support

The supplied specification also states support for compatible 3D video signals.

For 3D operation, the complete HDMI signal chain, including the source device and destination display, must support the required 3D format.

Deep Color Support

The stated specifications include support for up to 36-bit Deep Color. Actual colour performance depends on the capabilities and negotiated signal format of the connected HDMI equipment.

High-Definition HDMI Audio

The supplied product information lists support for high-definition digital audio formats including Dolby TrueHD and DTS-HD Master Audio.

Audio compatibility ultimately depends on the source, HDMI signal format and receiving equipment used in the installation.

Multiple Control Options

The HDMI Matrix can be operated using the supplied IR remote control or controls on the unit.

The supplied specification also lists RS-232 serial control, providing an additional control option for suitable professional AV and automation installations.

Ideal for Multiple HDMI Sources

The matrix can be used with compatible HDMI source equipment such as:

• Desktop computers and laptops
• DVR and NVR surveillance systems
• Media players
• Set-top boxes and decoders
• Gaming consoles
• Blu-ray and DVD players
• Streaming devices
• Presentation computers
• Other compatible HDMI source equipment

Suitable Applications

A 4×2 HDMI Matrix can be useful where several HDMI sources need to be managed across two displays.

• Conference and meeting rooms
• CCTV and security monitoring
• Control rooms
• Office AV installations
• Presentation systems
• Schools and training rooms
• Digital signage installations
• Home entertainment systems
• Professional AV installations

HDMI Matrix vs HDMI Splitter

An HDMI splitter normally takes one HDMI source and distributes that signal to multiple displays.

An HDMI Matrix provides multiple HDMI inputs and multiple outputs, allowing greater flexibility when selecting which connected source is routed to the available displays.

This makes the 4×2 matrix suitable for installations where several source devices need to share two HDMI displays.

Key Features

• 4 HDMI inputs
• 2 HDMI outputs
• HDMI matrix source routing
• Supports resolution up to 4K×2K @ 30Hz
• Supports 1080p @ 60Hz
• Supports compatible 3D video
• Stated support for up to 36-bit Deep Color
• Supports specified high-definition digital audio formats
• IR remote control
• Manual controls on the unit
• RS-232 serial control listed in the supplied specification

Package Contents

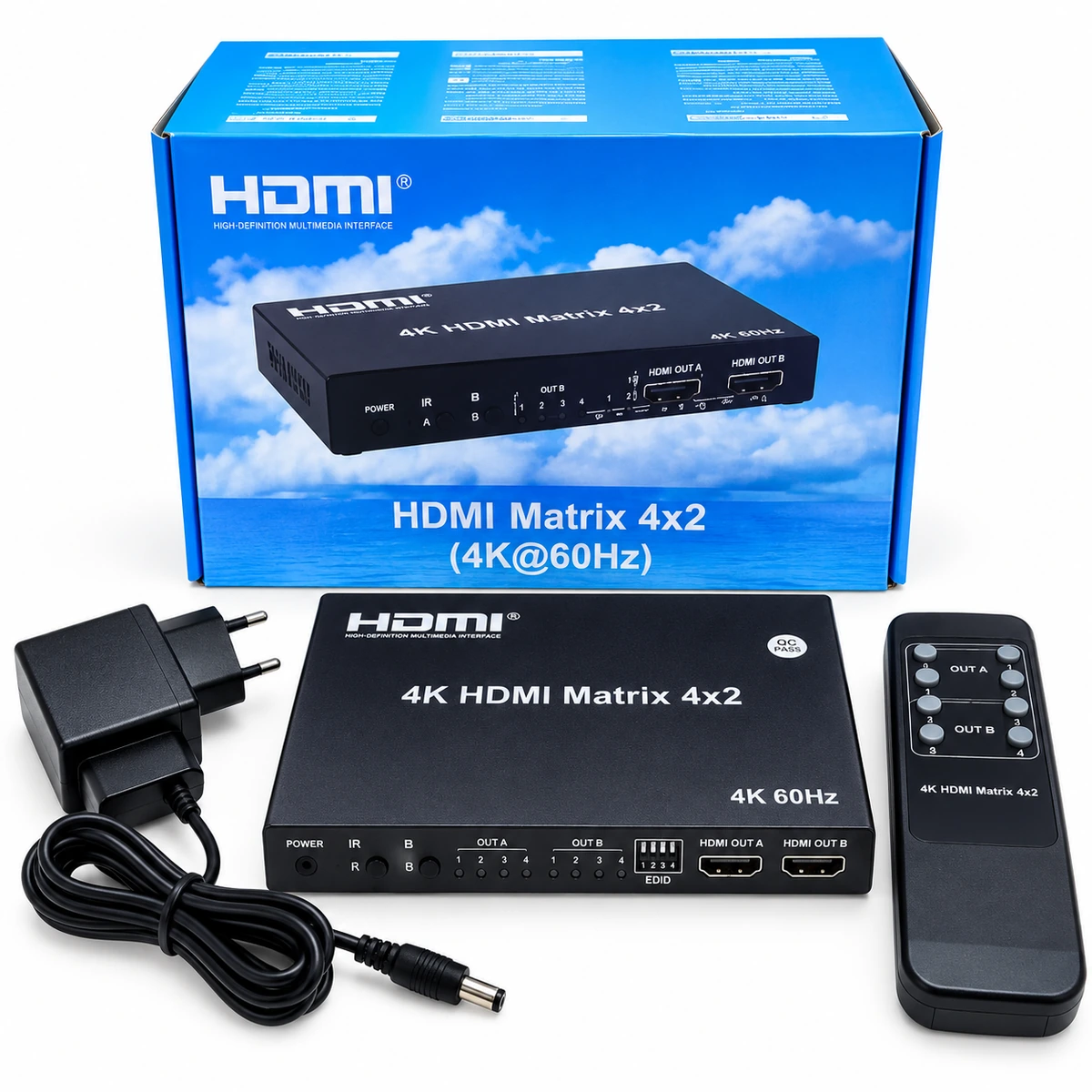

• 1 × 4K HDMI Matrix 4×2
• 1 × IR Remote Control
• 1 × Power Adapter

Before Ordering

Confirm that the 4-input, 2-output configuration matches your installation and that your source devices, HDMI cables and displays support the required video and audio formats.

Do not assume features such as 4K@60Hz, HDR, ARC, HDMI 2.0 or a particular HDCP version unless they are specifically confirmed for this exact unit.

Buy 4K HDMI Matrix 4×2 in Kenya

Buy the 4K HDMI Matrix 4×2 with Remote from Marcnet Gadgets for flexible HDMI source management in Kenya. It is suitable for offices, CCTV systems, meeting rooms, presentation environments, entertainment installations and other applications requiring multiple HDMI sources to be routed between two compatible displays.
