USB-C 3-in-1 Hub with HDMI, USB 3.0 & USB-C PD

Description

USB-C 3-in-1 Hub with HDMI, USB 3.0 & USB-C PD

The USB-C 3-in-1 Hub with HDMI, USB 3.0 & USB-C PD expands a compatible USB Type-C port into three useful connections: an HDMI display output, USB 3.0 Type-A port and USB-C Power Delivery charging port.

This compact multiport adapter is useful for laptops and other compatible USB-C devices with limited ports, allowing you to connect an external display, USB peripheral and compatible USB-C PD charger through a single hub.

Three Ports in One USB-C Hub

The hub provides three connectivity options from one compatible USB-C host connection:

• HDMI: External display connection
• USB 3.0 Type-A: Data and peripheral connection
• USB-C PD: Power Delivery pass-through charging input

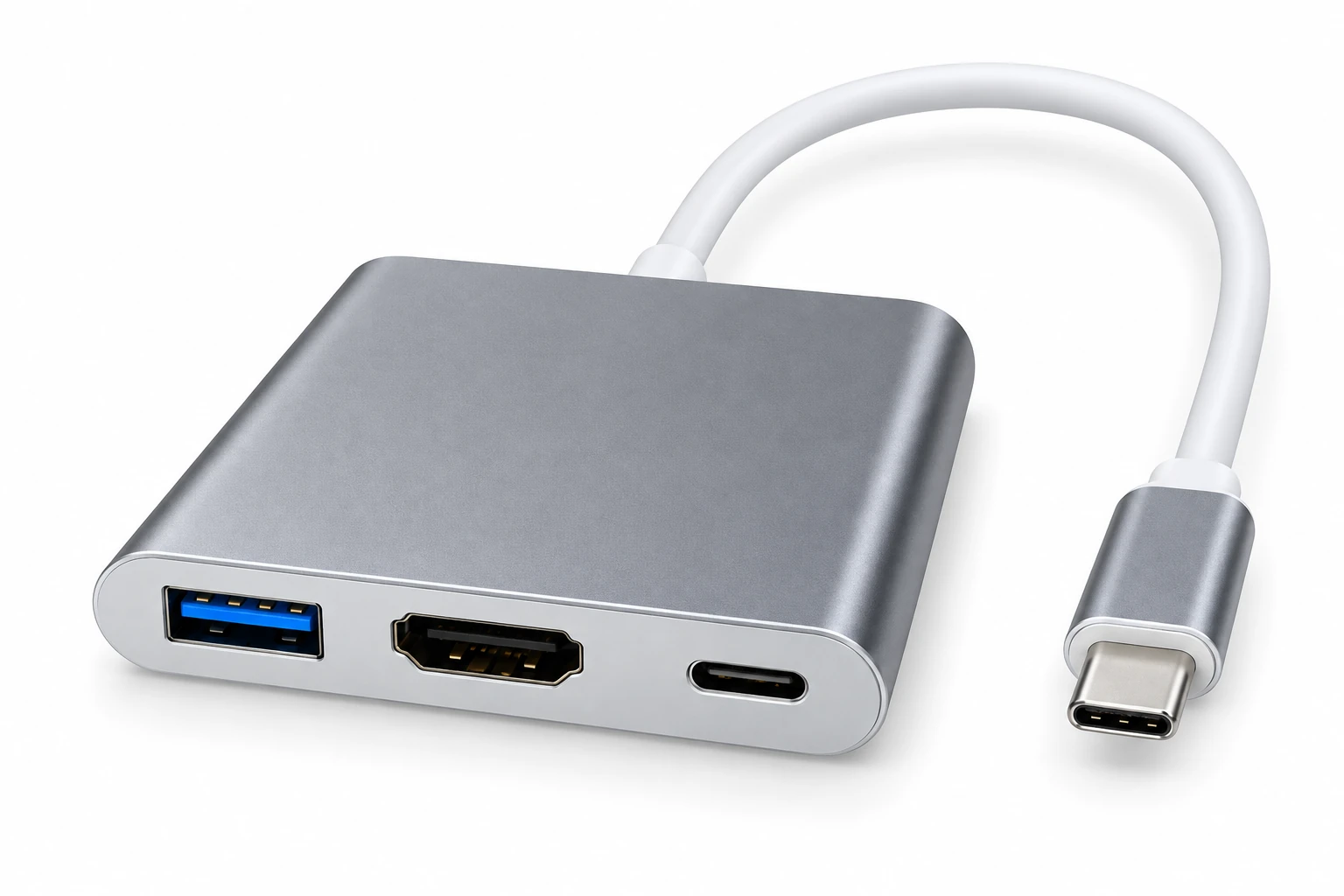

The supplied product image clearly shows all three ports positioned along the front of the compact adapter housing.

4K 30Hz HDMI Output

The HDMI port supports video output up to 4K 3840 × 2160 at 30Hz according to the supplied product specification.

Connect a compatible USB-C laptop or other supported source device to an HDMI-equipped monitor, television or projector for presentations, office work, larger-screen viewing and other display applications.

Actual resolution and refresh rate depend on the video capabilities of the host USB-C device and connected HDMI display.

USB 3.0 Port with Up to 5Gbps Data Transfer

The integrated USB 3.0 Type-A port provides a convenient connection for compatible USB peripherals and storage devices.

The supplied specification states data-transfer speeds of up to 5Gbps. Actual transfer performance depends on the host device, connected USB equipment, storage media and files being transferred.

Compatible applications can include:

• USB flash drives
• External storage devices
• Keyboards
• Mice
• USB receivers
• Other compatible USB peripherals

USB-C PD Pass-Through Charging

The USB-C port on the hub is designed for Power Delivery pass-through charging. Connect a suitable USB-C PD power adapter to supply power through the hub to a compatible host device.

The supplied product specification states power transmission of up to 100W. Actual charging power available to the connected laptop or device depends on the USB-C PD charger, host-device requirements and power used by the hub and attached peripherals.

The USB-C PD port should be treated as the charging input rather than assumed to be an additional general-purpose USB-C data port.

Expand a Laptop with Limited Ports

Modern laptops can provide powerful USB-C connectivity while offering relatively few physical ports. This 3-in-1 hub provides a compact way to add commonly required connections without carrying several individual adapters.

For example, you can connect an HDMI monitor, attach a USB keyboard or storage device and connect a compatible USB-C PD charger through the same hub.

Suitable for Work and Presentations

The combination of HDMI, USB and charging connectivity makes the hub useful for office desks, presentations, meetings, classrooms, remote working and travel.

Depending on the host device and operating system, an attached HDMI display may support screen mirroring or extended-desktop operation.

USB-C Video Compatibility

Important: not every USB-C port supports HDMI video output.

To use the HDMI function, the host USB-C port must support a compatible video-output mode, such as DisplayPort Alt Mode or another supported USB-C video implementation.

A USB-C port that supports only charging or basic USB data may not provide an HDMI video signal through this hub.

Key Specifications

• Product Type: USB-C 3-in-1 multiport hub
• Host Connector: USB Type-C male
• HDMI Port: 1
• Maximum Stated HDMI Output: 4K 3840 × 2160 at 30Hz
• USB Port: 1 × USB 3.0 Type-A
• Maximum Stated USB Transfer Rate: Up to 5Gbps
• USB-C Port: USB-C PD charging input
• Maximum Stated PD Transmission: Up to 100W
• Total Ports: 3
• Application: Display, USB peripheral/data and pass-through charging expansion

Before Ordering

Check the capabilities of your device’s USB-C port before purchasing. For full functionality, the host device needs to support the required USB data, video-output and Power Delivery features.

If HDMI output is important, confirm that the USB-C port supports external video. If pass-through charging is required, also confirm USB-C Power Delivery support and use a suitable PD charger.

Buy USB-C 3-in-1 Hub in Kenya

Order the USB-C 3-in-1 Hub with HDMI, USB 3.0 & USB-C PD from Marcnet Gadgets in Kenya for a compact way to add HDMI display output, USB connectivity and pass-through charging to a compatible USB-C device.
